品牌：尊龍凱時/是德（安捷倫）

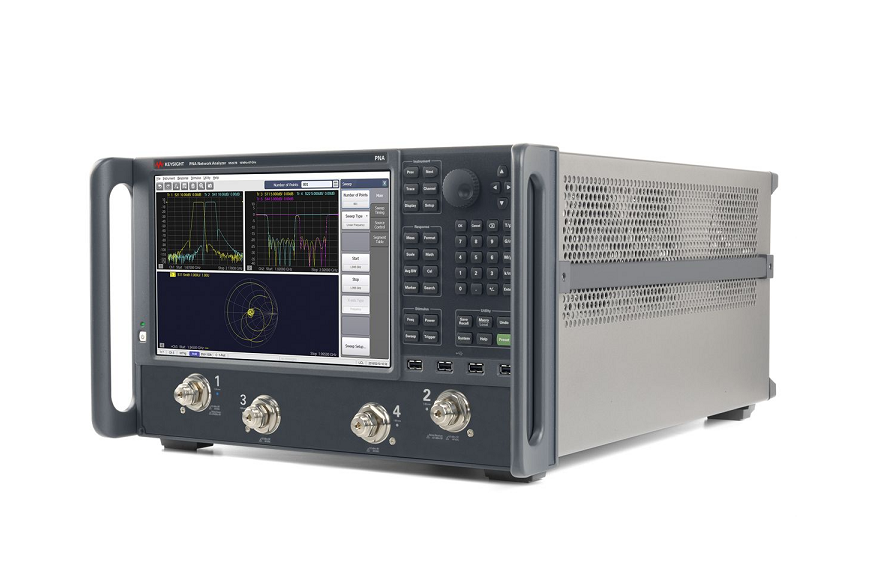

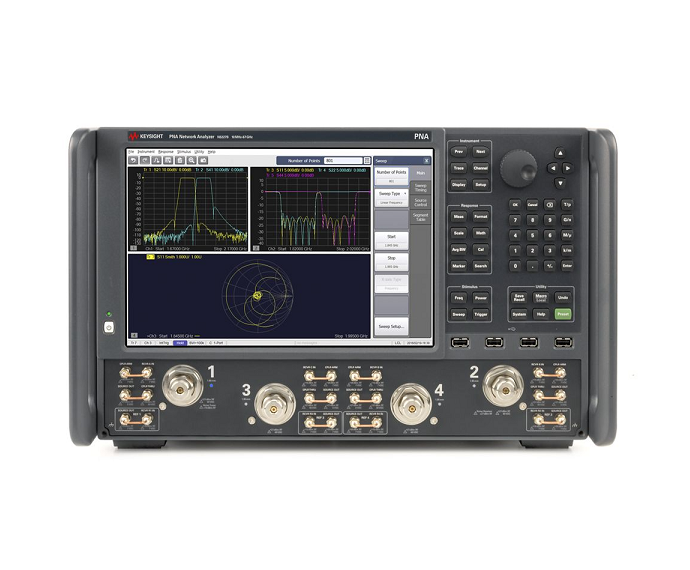

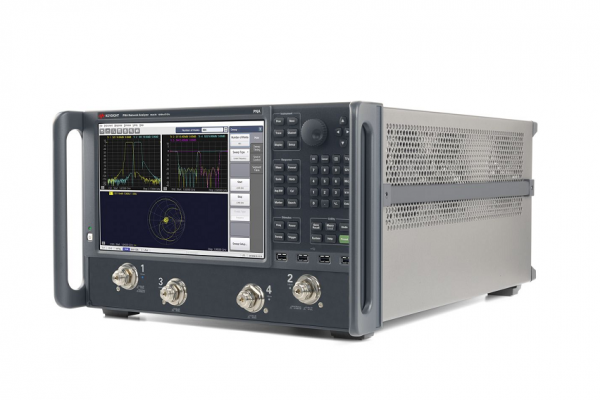

N5227B PNA 微波網絡分析儀，10 MHz 至 67 GHz，1 個信號源 2 端口和 2 個信號源 4 端口、信號源和接收機衰減器、偏置 T 型接頭、脈沖發生器和調制器、噪聲系數以及優秀的射頻性能。
PNA 系列網絡分析儀具有卓越的性能，尊龍凱時是測試放大器、混頻器和變頻器的理想選擇。 PNA 系列將先進的硬件和應用軟件融為一體，能夠快速、準確地測量各種器件。 所有型號都包含 2 端口單信號源或 4 端口雙信號源兩種配置。 內置脈沖調制器和脈沖發生器提供了脈沖 S 參數測量。
性能出眾的微波網絡分析儀幫助您應對更苛刻的測量挑戰。
以超低不確定度和超高穩定度執行 S 參數測量。
利用應用軟件簡化設置，高效表征有源元器件。
多點觸控屏和直觀的用戶界面幫助您加速洞察元器件特性。
通過定制化配置得到恰當?shù)男阅埽瑫r兼顧您的預算和測量需求。
N5227B-200 2-port, base hardware configuration
N5227B-201 2-port with configurable test set, reference mixer switch
N5227B-205 2-port with configurable test set, ref mixer switch, bias tees, low frequency extension
N5227B-210 2-port with metrology configuration
N5227B-219 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees
N5227B-220 2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension
N5227B-405 4-port with second source, configurable test set, reference mixer switch, bias tees, low frequency extension
N5227B-420 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension
N5227B-400 4-port with second source
N5227B-401 4-port with second source, configurable test set, reference mixer switch
N5227B-410 4-port with second source, metrology configuration
N5227B-419 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees
Calibration documentation
N5227B-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
N5227B-A6J ANSI Z540-1-1994 Calibration
N5227B-UK6 Commercial calibration certificate with test data
Additional hardware capability
N5227B-021 Add pulse modulator to internal 1st source
N5227B-022 Add pulse modulator to internal 2nd source
N5227B-020 Add IF inputs
N5227B-UNY Enhanced low phase noise performance
Software with Subscription
S93007B Automatic fixture removal
S93010B Time-domain analysis
S93011B Enhanced time domain analysis with TDR
S93015B Real-time S-parameter and power measurement uncertainty
S93025B Basic pulsed-RF measurements
S93026B Advanced pulsed-RF measurements
S93029B Noise figure measurements with vector correction
S93080B Frequency-offset measurements
S93082B Scalar mixer/converter measurements
S93083B Vector and scalar mixer/converter measurements
S93084B Embedded-LO capability
S93086B Gain-compression measurements
S93087B Intermodulation distortion measurements
S93088B Source phase control
S93089B Differential and I/Q device measurements
S930900B Spectrum analysis up to 8.5 GHz
S930901B Spectrum analysis up to 13.5 GHz
S930902B Spectrum analysis up to 26.5 GHz
S930904B Spectrum analysis up to 43.5 GHz
S930905B Spectrum analysis up to 50 GHz
S930907B Spectrum analysis up to 70 GHz
S930909B Spectrum analysis up to 90 GHz
S93093B Spectrum Analysis up to 125 GHz
S93094B Spectrum Analysis up to and beyond 125 GHz
S93118B Fast CW measurements
S93460B True-mode stimulus
S93551B N-port measurements
S93898B Built-in performance test software
S930317B Phase noise measurement up to 70 GHz
S930321B Phase noise measurement up to 125 GHz
S930700B Modulation distortion up to 8.5 GHz
S930701B Modulation distortion up to 13.5 GHz
S930702B Modulation distortion up to 26.5 GHz
S930704B Modulation distortion up to 43.5 GHz
S930705B Modulation distortion up to 50 GHz
S930707B Modulation distortion up to 70 GHz
S94601B Device measurement eXpert - DMX
S94602B Limit assistant
Accessories
U8488A Power Sensor; USB average thermocouple, 10MHz-67GHz
N5227B-1CM Rack mount kit for installation without handles
N5227B-1CP Rack mount kit for installation with handles
N1966A Pulse/IO Adapter
N6171A MATLAB Software
N5227B-SSD Additional removable solid state drive
